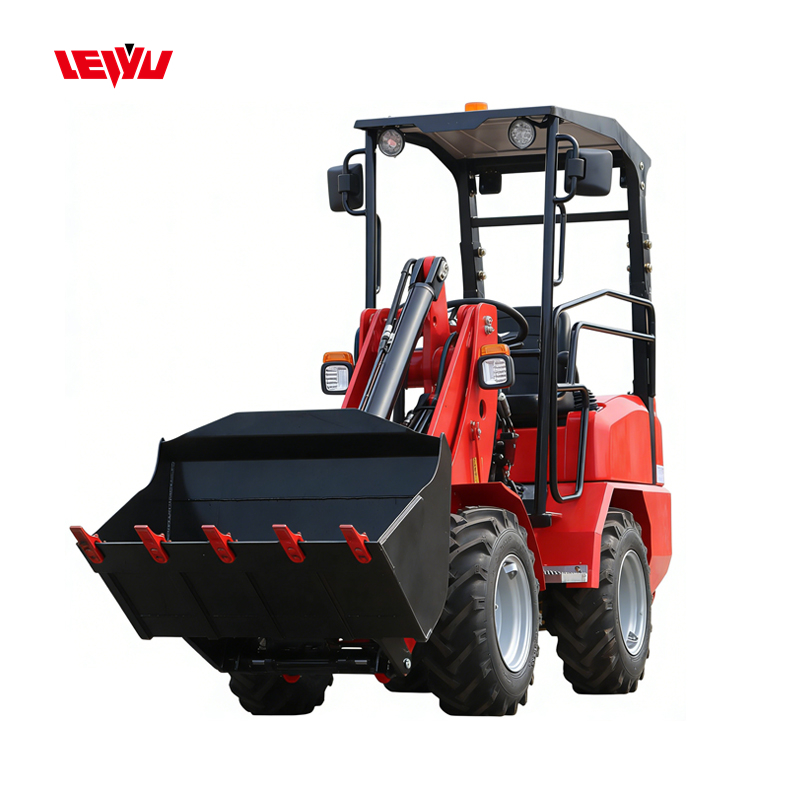

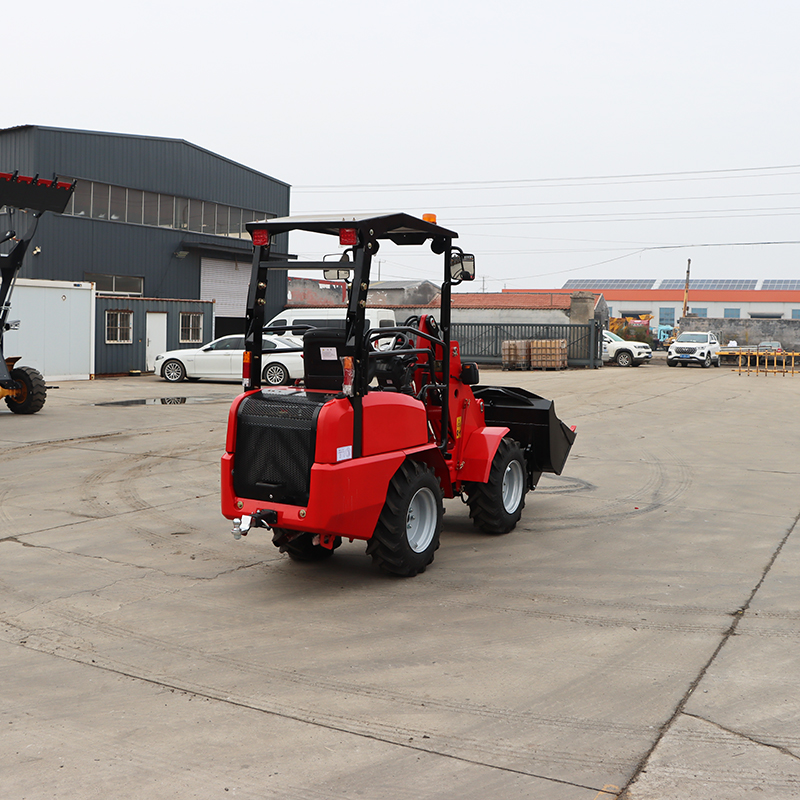

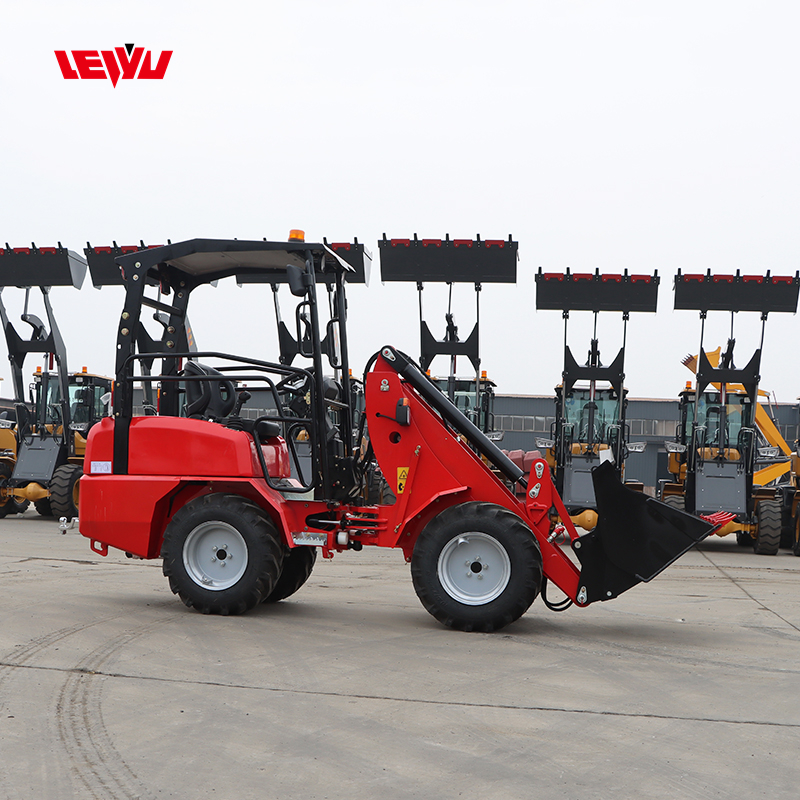

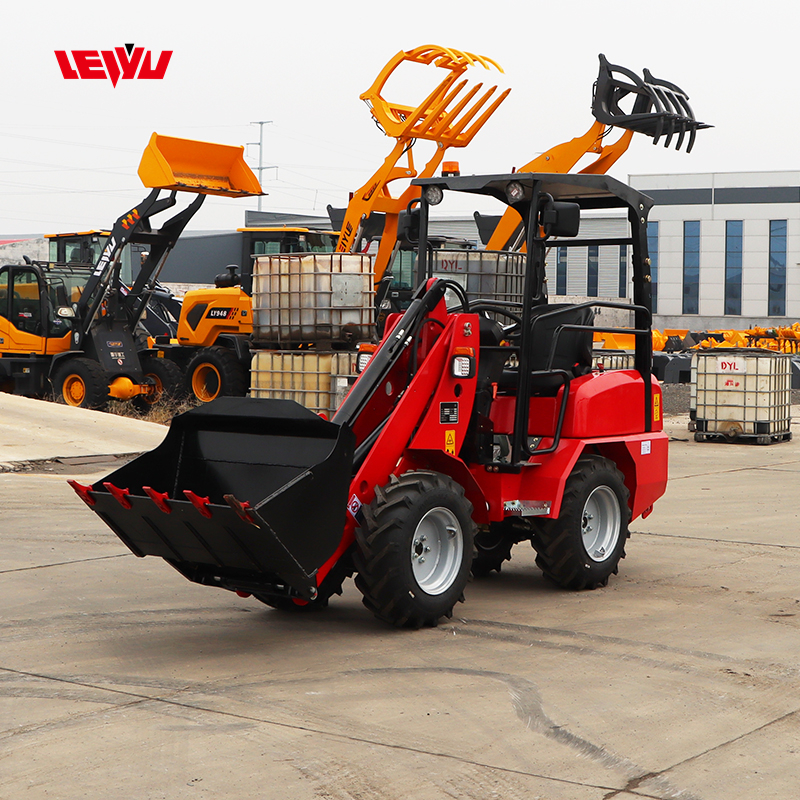

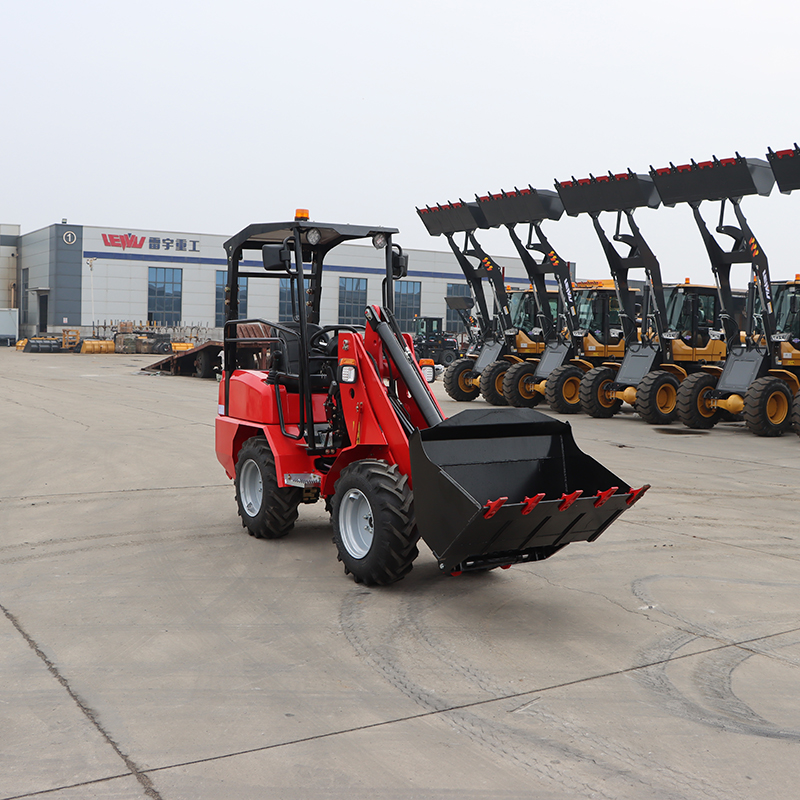

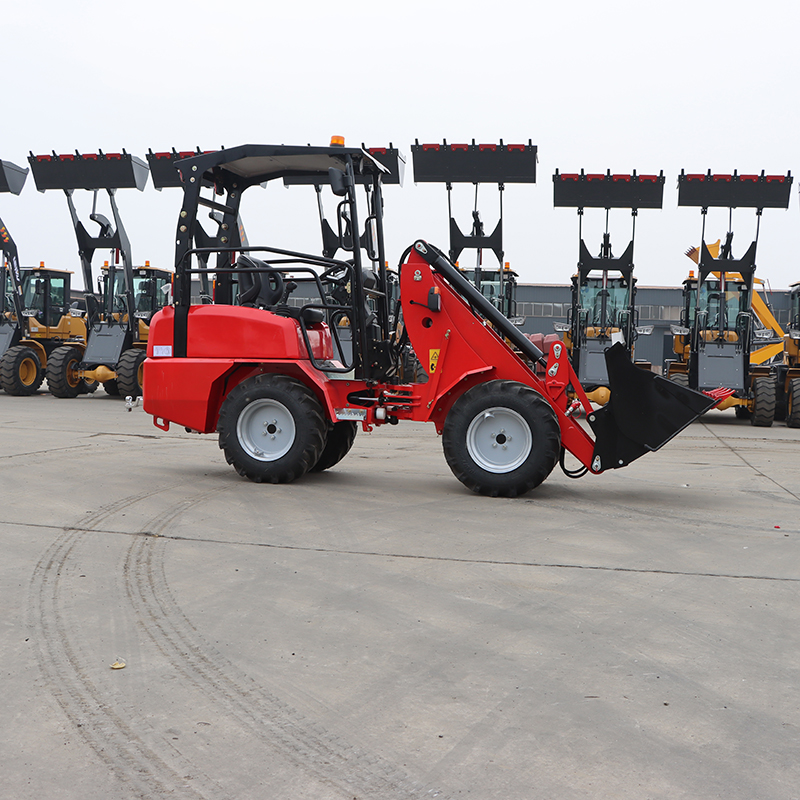

H180 Wheel Loader: Compact Power for Any Job Site
Designed for maximum productivity in tight spaces, the H180 Wheel Loader offers an 800kg rated load and 0.3m³ bucket capacity, powered by an efficient 18.8kW EURO5 engine. Its closed hydrostatic drive with independent wheel motors ensures excellent maneuverability, while features like automatic bucket leveling and a 2167mm dump height optimize performance. With a robust build, 20km/h max speed, and easy maintenance, it's the ideal solution for material handling in construction, agriculture, and logistics.
⚙️Products Description
| Operation weight | 2200kg |
| Rated load | 800kg |
| Max. load | 1000kg |
| Max. Shovel width | 1150mm |
| Bucket capacity | 0.3cbm |
| Max. grade ability | 30° |
| Min. ground clearance | 200mm |
| Wheelbase | 1540mm |
| Steering angle | 49° |
| Max. dump height | 2167mm |
| Load over height | 2634mm |
| Hinge pin height | 2900mm |
| Dump distance | 920mm |
| Overall dimension (L*W*H) | 4300x1160x2150mm |
| Min. turning radius over shovel | 2691mm |
| Min. turning radius over tyre | 2257mm |
| Track base | 872mm |
| Dumping angle | 45° |
| Function of leveling automatic | Yes |
| Engine brand/model | LAIDONG LL385BT |
| Type | Water cooled |
| Rated Power | 18.8kw |
| Rated Speed | 2600r/min |
| Number of cylinders | 3 |
| Emission standard | EURO5 |
| Optional engine | EPA4/EURO5 Perkins or Kubota or Yanmar engine |
| Type | Closed hydrostatic |
| Pump type | Piston pump |
| Drive type | Independent wheel motors |
| Classic angle oscillation | 7.5 each way |
| Max. speed | 20km/h |
| Pump type | Gear |
| Pump maximum flow | 42L/min |
| Pump maximum pressure | 200bar |
| System voltage | 12V |
| Starter type | Electric |
| Battery brand | Varta |
| Tyre model | 10.0/75-15.3 |
| Optional model | 31*15.5-15 |
| Hydraulic tank | 45L |
| Fuel tank | 45L |
| Packing quantity | 3Units（1*20HQ） 7Units（1*40HC） |
🛠️Loader Attachment Description
A single loader can be transformed for countless tasks using specialized attachments like the Standard Bucket, Four-In-One Bucket, Pallet Fork, Wood Grapple, and Hook for material handling; Hydraulic Hammer/Breaker, Trencher, Mini-Excavator, and Short/Long Augers for ground engagement; Vibratory Roller, Sweeper, Angle Broom, Snow Blade, and Snow Blower for site prep; Concrete Mixer and Cement Distributor for concrete work; plus specialized tools like the Fork Frame, Oil Drum Kits, Industrial Fork, Wheel Saw, and Impact Wrench.

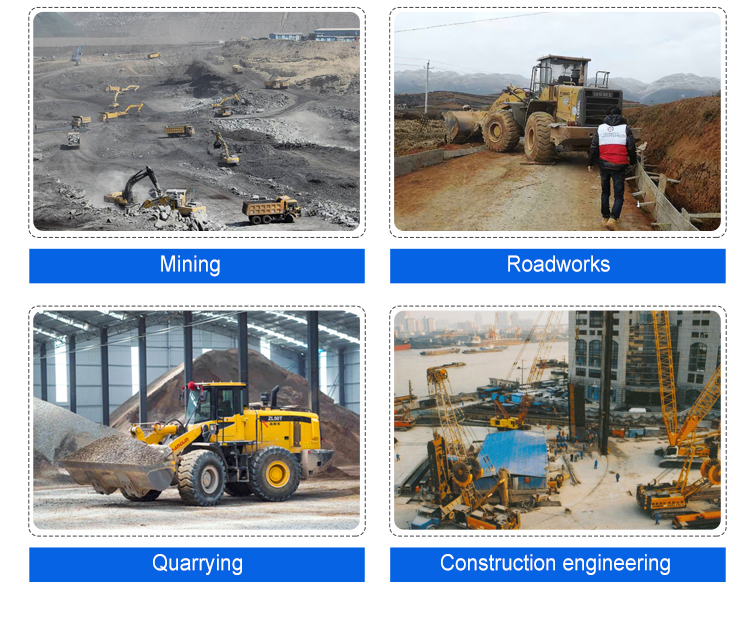

🌍Widely Applications
Its application scope covers various industries and fields such as construction, mining, agriculture, ports, garbage treatment, railway construction, metallurgy, wood processing, etc., providing strong handling and loading capabilities for various engineering projects and operations.
🚢Packaging and transportation

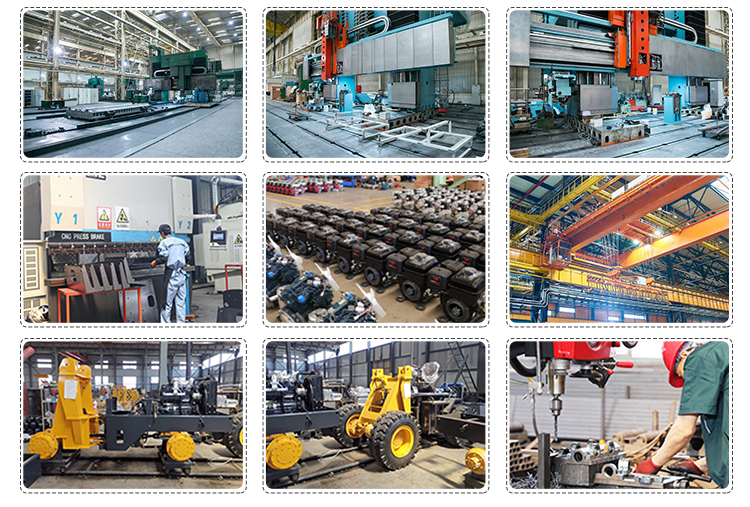

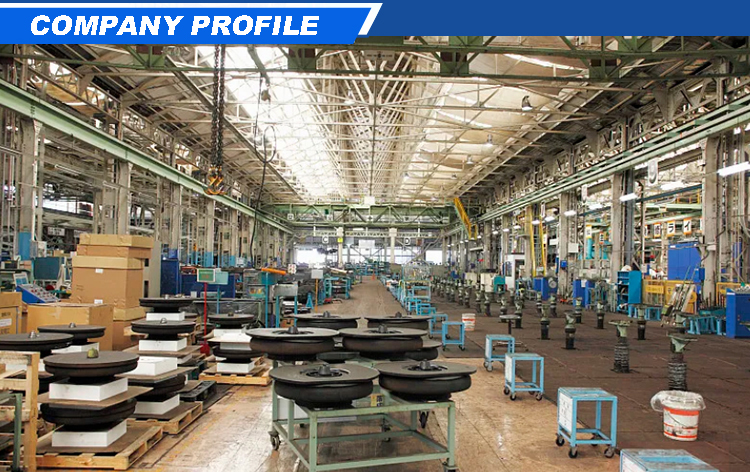

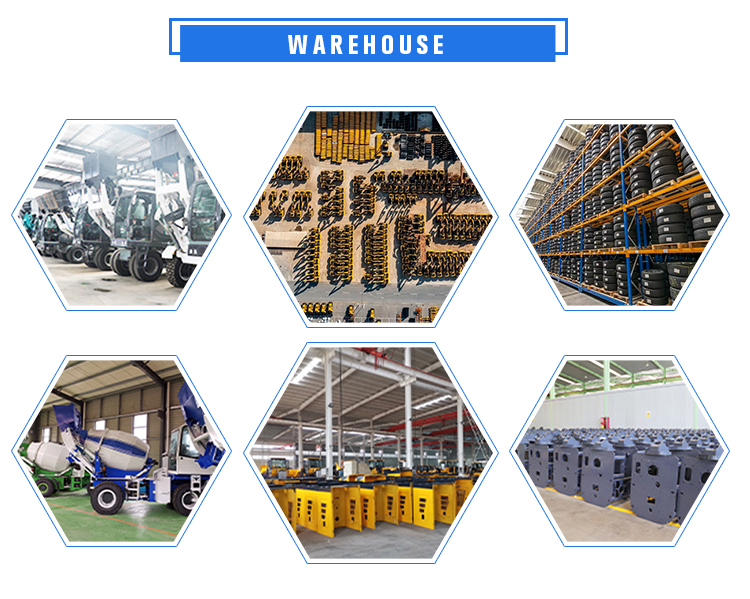

🏢Infrastructure and Production Capability
❓FAQ
Q1: Who are we?
We are a modern technology private enterprise that integrates research and development, manufacturing, sales, and service.
Q2: How can we guarantee quality?
Always a pre-production sample before mass production; always final inspection before shipment.
Q3: What can you buy from us?

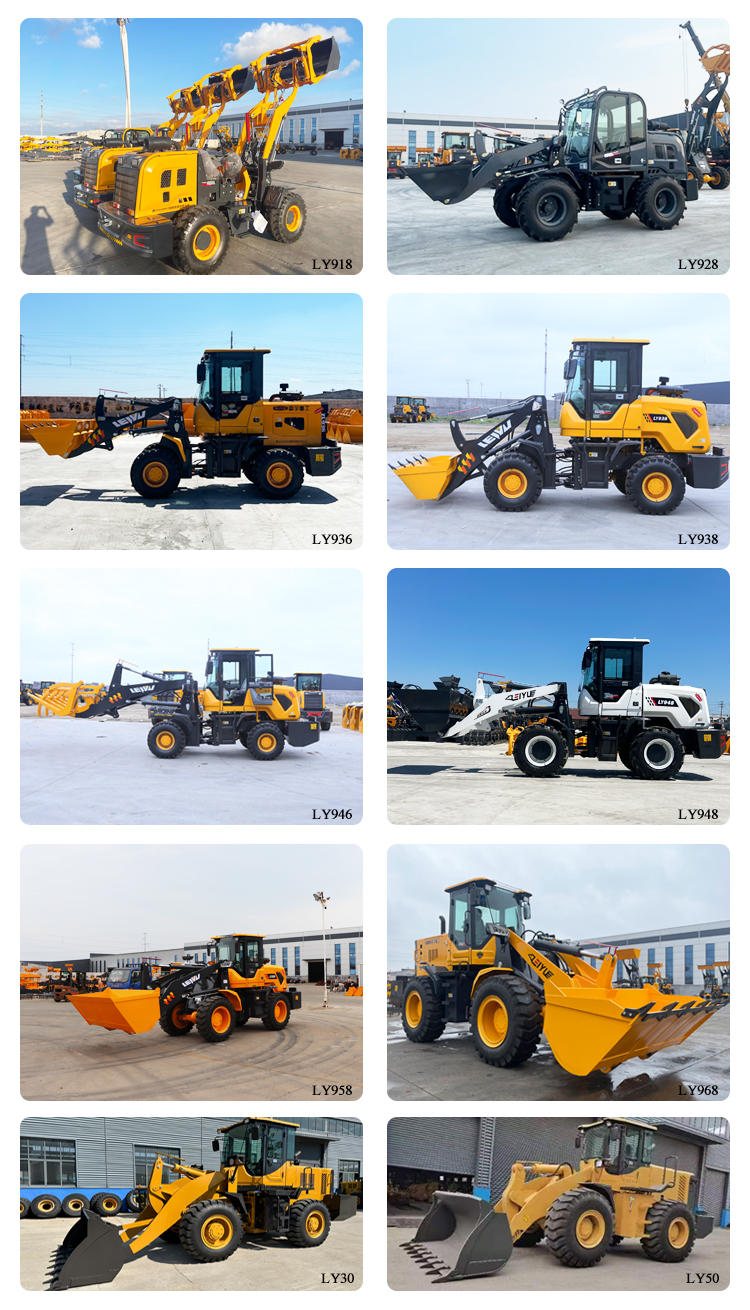

Excavators, loaders, two end busy, off-road forklifts, tricycles, four-wheeled trucks, fully automatic loading and mixing trucks and other products.
Q4: Why should you buy from us not from other suppliers?
We operate a professional machinery manufacturing plant. Scientific production technology, strong technical force, high-quality products, and preferential prices provide you with high-quality products for cooperation and win-win development.
Q5: Do you provide OEM/ODM services?
Yes, please provide us with the necessary information. We provide customized services to meet the different needs of global customers with different budgets. Supported languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
Q6: What is your delivery time?
Usually, we maintain inventory. If we have products in stock, the delivery time is 5-10 days after receiving the deposit. If we do not have stock, we will immediately arrange production with a delivery time of 30-45 days, depending on the order quantity.
